SS304 Braided Flexible Hose, Industrial Grade
Stainless steel braided flexible hoses for industrial water, steam, and pressurized fluid transfer. SS304 corrugated inner tube with SS304 braided sheath. Available with BSP, NPT, or ANSI-flange ends. Steam-rated variants available for saturated and lightly-superheated steam service.
WRAS · ISO 9001 · TÜV · CE · ASME · PED|Nationwide PH delivery|Quote in 3 to 5 business days|1 business day response
Request a Quotation
Send us your requirements and we'll prepare a detailed quotation with pricing and scope of supply.
Overview

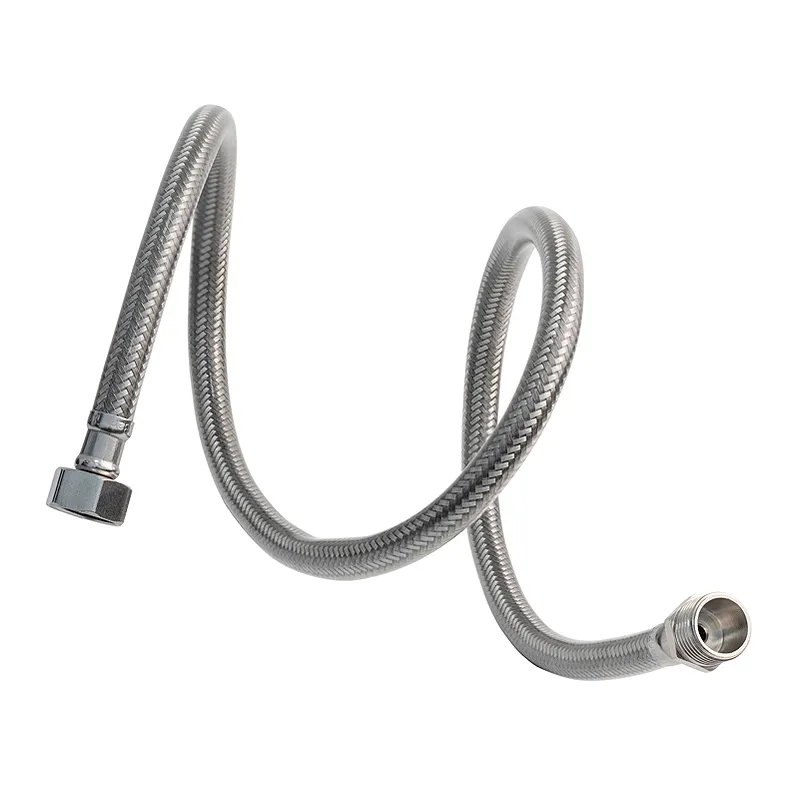

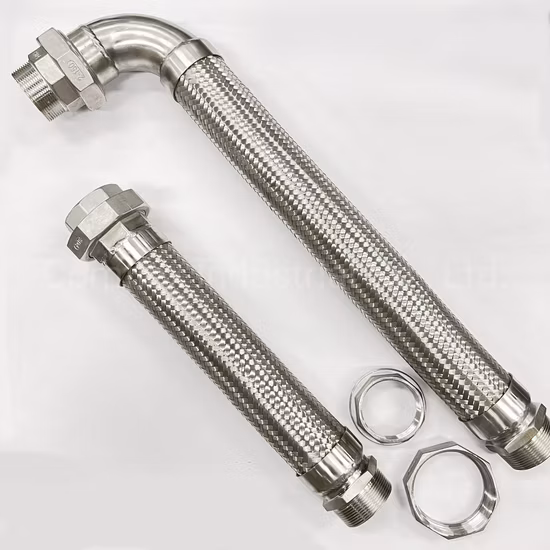

Our stainless steel braided flexible hoses feature a corrugated SS304 inner tube surrounded by a braided stainless steel outer jacket for maximum flexibility and pressure resistance. These hoses absorb vibration from pumps, compensate for thermal expansion, and simplify connections in tight spaces. Available from DN15 (1/2") to DN100 (4") with BSP, NPT, or flanged connections. Temperature range from -20°C to 150°C covers virtually all commercial water and HVAC applications. Essential for connecting pumps to piping systems — the flexible connection absorbs pump vibration and prevents stress cracking in rigid pipe joints.
Key Features
Technical Specifications
| Inner Tube | SS304 corrugated |
| Outer Braid | SS304 wire braid |
| Size Range | DN15 (1/2") to DN100 (4") |
| Working Pressure | 100 PSI (7 bar) standard |
| Burst Pressure | 300 PSI (21 bar) |
| Temperature Range | -20°C to +150°C |
| Connections | BSP / NPT threaded or Flanged |
| Length | Custom (300mm to 6,000mm+) |
| MOQ | 6 pieces per size |
Applications
Sizes, Ratings & Lead Times
| Size (nominal) | Pressure rating | Standard length | End type options | Temperature range | Lead time |
|---|---|---|---|---|---|
| DN15 (1/2") | PN10 / PN16 | 300-1500 mm | Female BSP, male NPT, flange | -20°C to 200°C | 14-28 days |
| DN25 (1") | PN10 / PN16 | 100-2000 mm | Female BSP, male NPT, ANSI 150 RF flange + SS304 weld-nipple | -20°C to 200°C | 14-28 days |
| DN40 (1-1/2") | PN16 | 500-2000 mm | Flange, BSP | -20°C to 200°C | 14-28 days |
| DN50 (2") | PN16 | 500-2000 mm | Flange, BSP | -20°C to 150°C standard, 200°C steam-rated | 14-28 days |
| DN80 (3") | PN16 | 500-2000 mm | Flange | -20°C to 200°C | 21-35 days |
| DN100 (4") | PN16 | 500-2000 mm | Flange | -20°C to 200°C | 21-35 days |
Steam bypass kits: 3-hose sets with mixed lengths (typical 100 mm + 300 mm + 1000 mm), DN25, PN16, ANSI 150 RF flange + SS304 weld-nipple ends, rated for saturated / lightly-superheated steam at 150 psig / 200°C. Available with tee, ball valve, BI drain pipe, gaskets and bolts as complete kits.
Who Typically Buys This
What Determines Your Quote
Every quote is engineered to your operating requirements. Pricing depends on:
- Configuration: capacity, flow rate, head pressure, motor size, voltage/phase, materials of construction
- Certification tier: WRAS-cert vs commercial-grade, ASME stamping, IP rating for panels
- Delivery region: nationwide (Metro Manila, Luzon, Visayas, Mindanao); freight varies by destination
- Installation scope: supply-only, supply + mechanical install, or full turn-key with commissioning
- Payment structure: milestone terms tailored to project timeline (typically 40/30/20/10 for engineered scopes; 70/30 for equipment supply)
- Tax status: 12% VAT applies to VAT-registered buyers; Zero-VAT available for eligible PEZA / SBMA locators and exporters
Formal written quote within 3 to 5 business days of complete spec confirmation. Response within 1 business day to every inquiry.
Frequently Asked Questions
Are these hoses rated for steam service?
Yes, steam-rated variants are available with an all-metal corrugated inner tube for saturated and lightly-superheated steam at up to 150 psig / 200°C. Specify steam service when you inquire so we quote the correct construction; standard water-service hoses should not be used on steam lines.
What end connections are available?
Female BSP, male NPT, and ANSI 150 RF flange ends with SS304 weld-nipples, depending on size. Mixed-end configurations (flange on one side, threaded on the other) are available for retrofit situations. Tell us what you are connecting to and we match the ends.
Can I order custom lengths and kits?
Yes. Standard lengths run 100 to 2000 mm depending on diameter, and custom lengths are available. Steam bypass kits come as complete 3-hose sets with tee, ball valve, drain pipe, gaskets, and bolts, ready for installation.
What certifications and documents come with the hoses?
Our stainless steel braided hoses are manufactured under ISO 9001:2015 quality systems and carry CE marking, with WRAS certification available on request for projects that require approved potable water components. Every shipment includes material test certificates confirming the SS304 grade of both the corrugated inner tube and the braided outer jacket, together with factory inspection reports, giving you full traceability for compliance and procurement records. If your project specification calls for pressure test reports or a particular documentation format, raise it during inquiry and we confirm what can be provided in the written quotation. This paperwork matters most on potable water, food-adjacent, and steam applications where an auditor or consultant will ask for proof of material grade, and having the documents arrive with the goods saves your team from chasing them after installation is already done.
Do you deliver flexible hoses nationwide?
Yes. Delivery covers Metro Manila and all Luzon provinces, Visayas, and Mindanao, with regular shipments to industrial estates including SBMA, Clark, and PEZA zones where many of our plant and facility clients operate. Because hoses are compact items compared to tanks and pumps, they travel easily by standard freight, and smaller orders are often consolidated with other items in your purchase to keep transport cost down. Note the minimum order quantity of 6 pieces per size, which is worth planning around if you are standardizing hose sizes across multiple pump connections in one facility. Send your inquiry with the complete delivery address plus the required sizes, lengths, and end connections: our team responds within 1 business day, and a formal written quotation including freight to your site follows within 3 to 5 business days.
What warranty applies to stainless steel flexible hoses?
Each hose is covered by a manufacturer warranty against defects in materials and workmanship, and the exact warranty period for your order is confirmed in the written quotation. The warranty certificate ships with the goods alongside material test certificates and factory inspection reports, so the documentation your maintenance and procurement teams need is complete on arrival. To keep the warranty valid, the hose must operate within its rated envelope: 100 PSI working pressure for standard water-service hoses, the stated temperature range, and no torsional twisting during installation, which is the most common cause of premature failure in braided hoses. If a hose does fail in service, contact us as your single point of contact: we coordinate the assessment and the replacement so your team deals with one supplier rather than chasing warranty paperwork across multiple parties.
