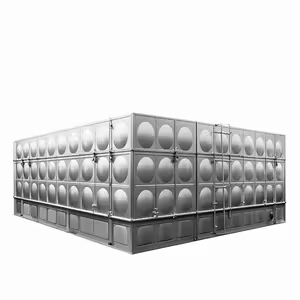

SS304 Stainless Steel Modular Water Tank (Philippines)
SS304 stainless steel bolted modular tanks for potable water, process water, and premium commercial applications. Corrosion-resistant, hygienic, and long-life with a 30+ year design life. Available in flat-pack modular panels or fully welded configurations.
WRAS · ISO 9001 · TÜV · CE · ASME · PED|Nationwide PH delivery|Quote in 3 to 5 business days|1 business day response
Request a Quotation
Send us your requirements and we'll prepare a detailed quotation with pricing and scope of supply.
Overview
Stainless steel water tanks deliver the highest standard in water storage — zero leakage, zero contamination, and a 30+ year working life. Built from SS304 or SS316 panels, these tanks are ideal for applications where water purity is critical. Available in welded or bolted configurations. While heavier and more expensive than FRP, stainless steel tanks offer unmatched longevity and are 100% recyclable at end of life.
Key Features
Technical Specifications
| Material | SS304 / SS316 / SS316L |
| Panel Thickness | 1.2mm to 3.0mm |
| Capacity | 5,000L to 300,000L+ |
| Temperature Range | -40°C to +100°C |
| Surface Finish | 2B / No.4 brushed / Mirror polish |
| Joint Type | Argon arc welded or bolted with EPDM gaskets |
| Framework | Stainless steel internal bracing |
| Foundation | Concrete base pad required |
Applications
Sizing, Configurations & Lead Times
| Capacity | Typical dimensions (L x W x H) | Construction | Lead time |
|---|---|---|---|
| 8,000 L (8 m³) | 2 x 2 x 2 m | SS304 bolted modular panels | 45-60 days |
| 30,000 L (30 m³) | 3 x 3 x 3.3 m | SS304 bolted modular panels | 45-60 days |
| 50,000 L (50 m³) | 5 x 3 x 3.3 m | SS304 bolted modular panels | 60-75 days |
| 100,000 L (100 m³) | 10 x 3 x 3.3 m or 5 x 6 x 3.3 m | SS304 bolted modular panels | 60-75 days |
| Custom welded | Sized to site | Fully welded SS304 | 75-90 days |
Stainless steel runs 2 to 3 times longer lead time than FRP because larger sizes are custom fabricated; exact schedule is confirmed in your written quotation. For very large capacities above 200 m³, stainless becomes cost-prohibitive versus FRP; FRP is our default recommendation above 100 m³ unless a specific hygiene or lifespan requirement demands stainless.
Who Typically Buys This
What Determines Your Quote
Every quote is engineered to your operating requirements. Pricing depends on:
- Configuration: capacity, flow rate, head pressure, motor size, voltage/phase, materials of construction
- Certification tier: WRAS-cert vs commercial-grade, ASME stamping, IP rating for panels
- Delivery region: nationwide (Metro Manila, Luzon, Visayas, Mindanao); freight varies by destination
- Installation scope: supply-only, supply + mechanical install, or full turn-key with commissioning
- Payment structure: milestone terms tailored to project timeline (typically 40/30/20/10 for engineered scopes; 70/30 for equipment supply)
- Tax status: 12% VAT applies to VAT-registered buyers; Zero-VAT available for eligible PEZA / SBMA locators and exporters
Formal written quote within 3 to 5 business days of complete spec confirmation. Response within 1 business day to every inquiry.
Frequently Asked Questions
When should I choose stainless steel over FRP?
Choose SS304 when your operation demands surgical hygiene (hospitals, pharma, dairy), a 30+ year lifespan, or a premium finish. For very large capacities above 200 cubic meters, stainless becomes cost-prohibitive versus FRP; FRP is our default recommendation above 100 cubic meters unless a specific hygiene or lifespan requirement demands stainless.
What is the lead time for a stainless steel tank?
Stainless runs 2 to 3 times longer than FRP because larger sizes are custom fabricated. Expect 45 to 90 days depending on capacity and configuration. Standard smaller modular sizes come in faster; fully welded custom tanks take the longest. We confirm the exact schedule in your written quotation.
Is SS304 safe for potable water?
Yes. SS304 is inherently inert for potable water contact and is the standard grade for hygienic water storage worldwide. Every tank ships with material test certificates confirming the steel grade, plus inspection reports and warranty documents for your compliance records.
Do you deliver and install nationwide?
Yes. Delivery covers Metro Manila, all Luzon provinces, Visayas, and Mindanao, with regular deliveries to SBMA, Clark, Cavite, and Batangas industrial estates. Supply-only and supply-plus-installation options are both available and quoted separately so you can compare.
What warranty coverage comes with a stainless steel tank?
Every stainless steel tank we supply carries a manufacturer warranty covering panel integrity, welded or gasket-sealed joints, and included accessories, and the specific warranty period for your configuration is confirmed in the written quotation before you commit. The warranty certificate is included in the delivery documents together with material test certificates confirming the SS304 or SS316 grade and factory inspection reports, so your procurement and compliance files are complete from day one. As your industrial supply partner, our team acts as the single point of contact for any claim: you report the issue to us, and we coordinate the assessment and the resolution so you are never left chasing paperwork on your own. Because SS304 and SS316 carry a 30 plus year working life, claims on properly installed tanks are rare, but the protection is documented in full from the start.
Can the tank be customized to non-standard dimensions or fittings?
Yes. Stainless steel panel tanks are among the most customizable products we carry: capacities run from 5,000 liters to over 300,000 liters, panel thickness from 1.2 mm to 3.0 mm, and you can specify SS304, SS316, or SS316L to match water chemistry and hygiene requirements. Inlet, outlet, overflow, and drain positions are configured to your piping layout, and surface finishes are available in 2B, No.4 brushed, or mirror polish for facilities where cleanability matters. Non-standard footprints for rooftops, basements, and tight utility rooms are handled at the design stage: send us your site drawings and required capacity, and we return a proposed tank layout with the quotation within 3 to 5 business days. Custom configurations can extend the fabrication schedule, so the exact lead time for your build is confirmed in the written quotation.
Related Products in Water Storage Solutions
Ready to Spec This In?
Send us your requirements (capacity, location, timeline, install scope) and we'll return a fully specced quotation with drawings, material certificates, and lead time within 3 to 5 business days.
Request a Quotesales@johob.com · +63 997 078 9953 (Viber)
Common inquiries we can answer today: sizing math, alternative product recommendations, delivery estimates, milestone payment structures, PhilGEPS or PEZA compliance paperwork.
