Power Generation & Steam Turbines

Power Generation & Steam Turbines

Industrial steam turbines, generator sets, and power-generation equipment for cogeneration, mechanical drive, and captive power plants. Convert process steam into electricity or shaft power.

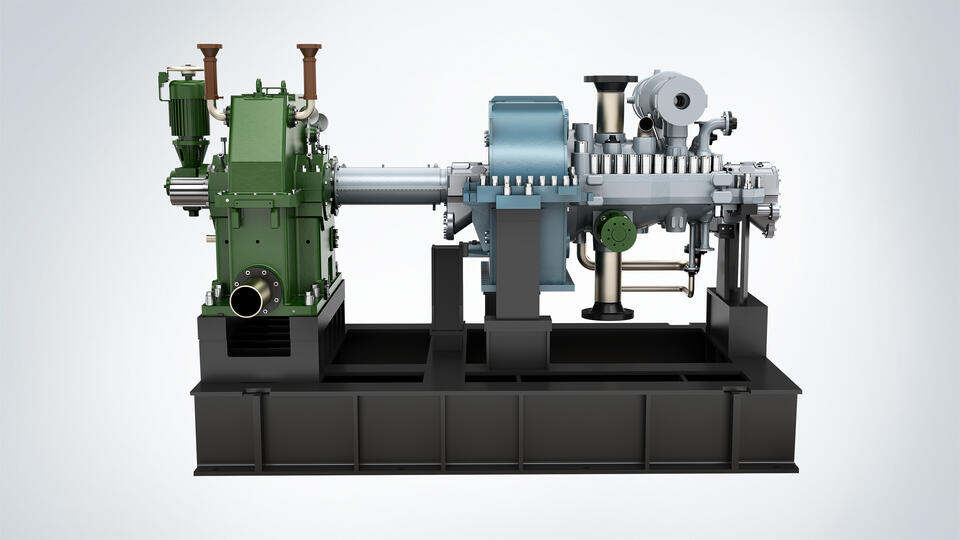

Industrial steam turbine unit

Industrial Steam Turbine

Back-pressure and condensing steam turbines for power generation, mechanical drive, and cogeneration. 100 kW to 30 MW output, single and multi-stage configurations.

  • Back-pressure or condensing configurations
  • Single-stage and multi-stage impulse/reaction designs
  • Precision-machined alloy steel blades
  • Dynamically balanced rotor for low vibration
CEISO 9001:2015API 611

View full specifications

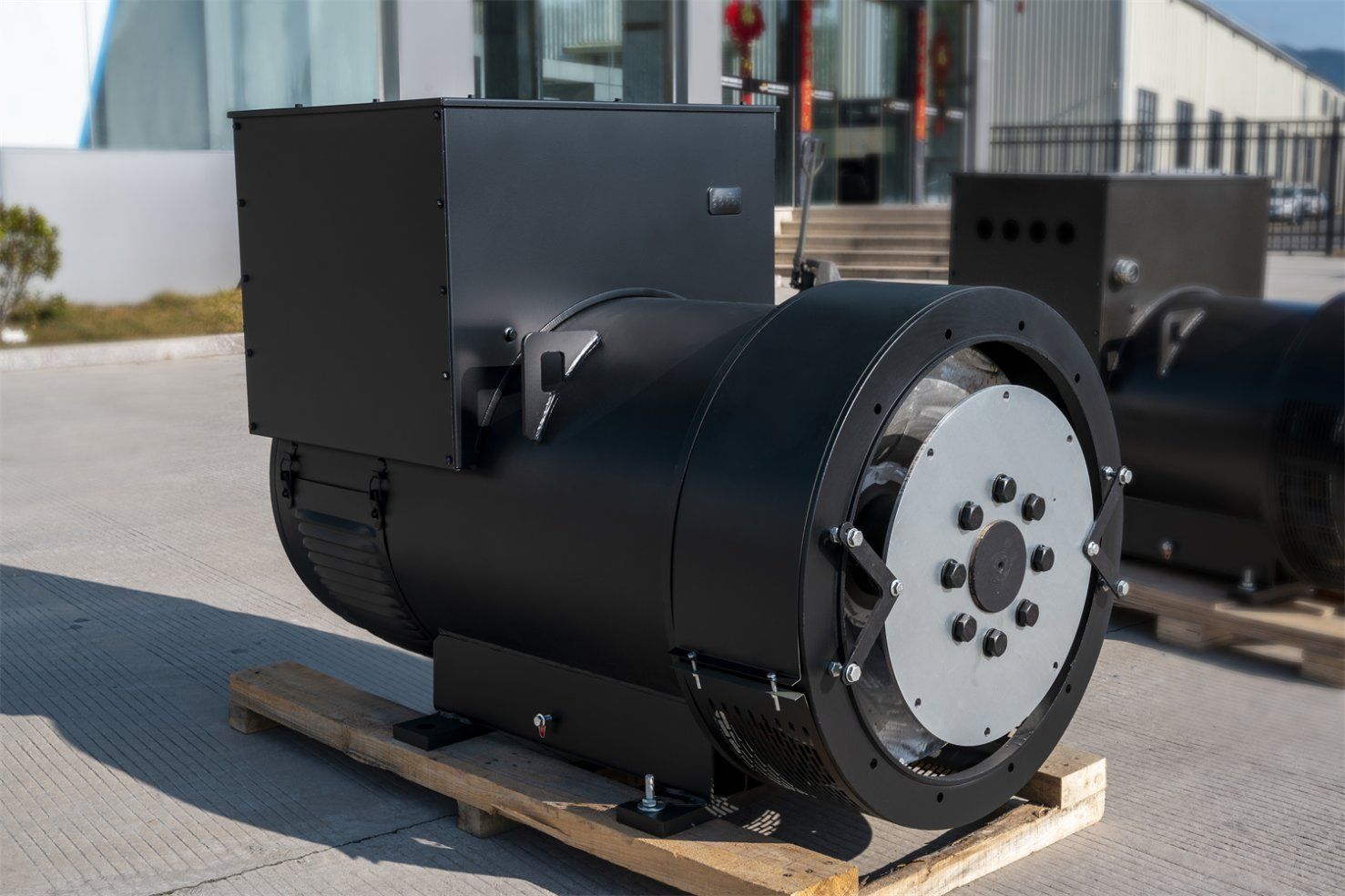

Industrial generator alternator set

Industrial Generator / Alternator Set

Synchronous AC generators coupled to steam turbines, gas turbines, or prime movers. 100 kW to 30 MW, 400V to 13.8 kV output. Brushless excitation, Class H insulation.

  • Synchronous AC generator — 4-pole or 6-pole designs
  • Brushless excitation with AVR (Automatic Voltage Regulator)
  • Class H insulation — 180°C temperature rating
  • IP23 (protected) or IP54 (dust/splash-proof) enclosures
CEISO 9001:2015IEC 60034

View full specifications

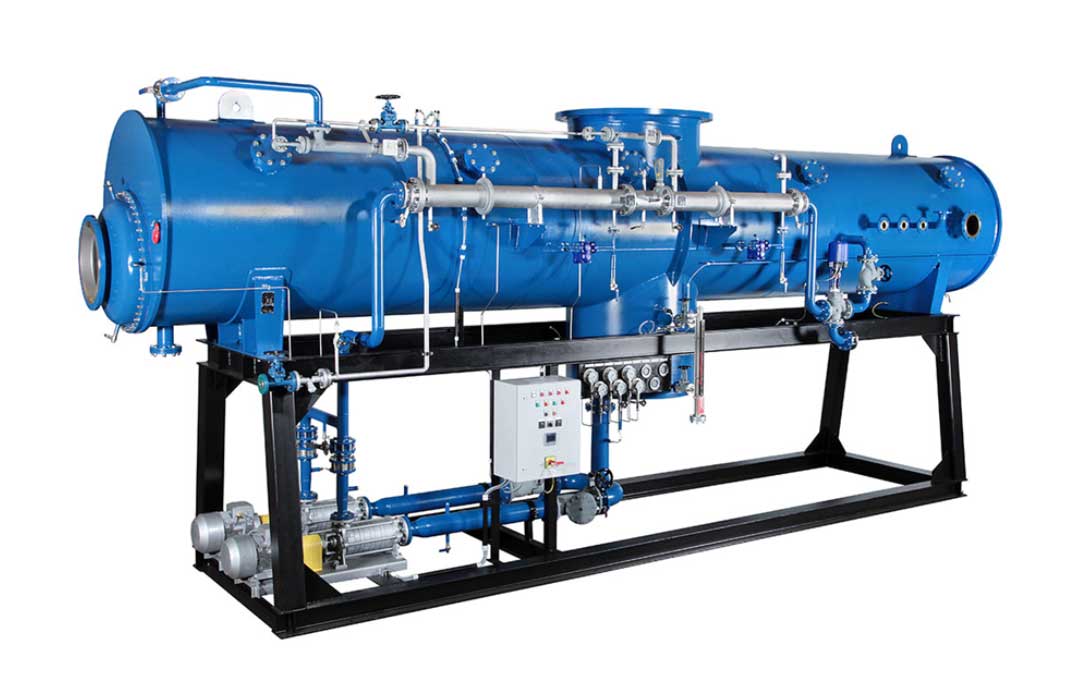

Steam condenser shell-and-tube unit

Steam Condenser

Surface-type shell-and-tube condensers for condensing steam turbines. Convert exhaust steam to water, creating vacuum for maximum turbine efficiency. Air-cooled or water-cooled options.

  • Shell-and-tube surface condenser design
  • Cupronickel (90/10 or 70/30) or titanium tubes available
  • Carbon steel or stainless steel shell construction
  • Single-pass or two-pass water circuit configurations
ASMECEISO 9001:2015HEI

View full specifications

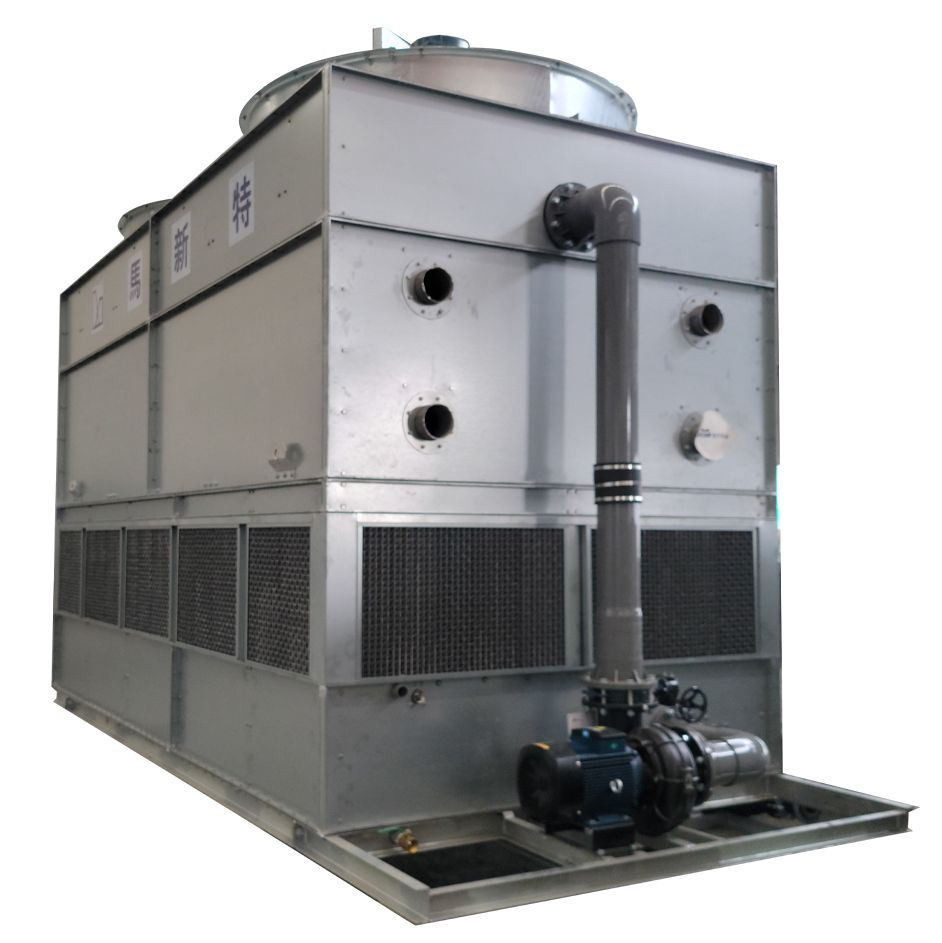

Industrial cooling tower — evaporative

Industrial Cooling Tower

Open-circuit (evaporative) and closed-circuit cooling towers for condenser cooling, process cooling, and HVAC loops. FRP, steel, or concrete construction. 100 TR to 5,000+ TR capacity.

  • Counter-flow or cross-flow airflow designs
  • FRP (Fiberglass Reinforced Plastic) construction — standard
  • Galvanized steel or SS304 structural options available
  • PVC fill media (film-type) or splash-type
CTIEuroventCEISO 9001:2015

View full specifications

Diesel generator set weatherproof canopy

Diesel Generator Set

Standby and prime-power diesel gensets, 50 kW to 3,000 kVA. Cummins, Perkins, Volvo Penta, or Weichai engines coupled with brushless AC alternators. Open or weatherproof-canopy configurations.

  • Cummins, Perkins, Volvo Penta, or Weichai diesel engine
  • Brushless synchronous AC alternator (Stamford/Leroy Somer/Marathon)
  • AMF (Auto Mains Failure) controller — DSE / ComAp / Woodward
  • 10-15 second startup-to-full-load response
CEISO 8528ISO 9001:2015EPA Tier 2/3

View full specifications

Need a Quotation?

Send us your requirements and specifications. We'll prepare a detailed quotation with pricing and scope of supply.

Request a Quotation
